5.12"(130mm) x 16.875"(429mm) x 2.75"(70mm) Double Acting Hydraulic Cylinder Orenstein and Koppel 15073241110

5.12″(130mm) x 16.875″(429mm) x 2.75″(70mm) Double Acting Hydraulic Cylinder Orenstein and Koppel 15073241110

Original price was: $299.95.Current price is: $74.99.

SKU: 904814 Category:

Description

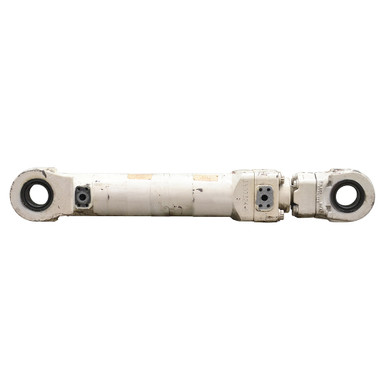

5.12″(130mm) x 16.875″(429mm) x 2.75″(70mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. ORENSTEIN AND KOPPEL double acting hydraulic cylinder. Numbers on cylinder 15073241110.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.12″(130mm) x 16.875″(429mm)
  • Barrel Thickness  0.551″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 2.75″
  • Ports 4 bolt 1″ code 62 flange size 16
  • Retracted Length 44.5″
  • Gland Face to Rod Pin Center 10″
  • Shpg. 353 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 2.48″
  • Pin-Center-To-Tang-End 3.875″
  • Swivel Eye Width 2.125″
  • Pin Hole 3.15″(80mm)
  • Base End Tang
  • Width 2.64″
  • Pin-Center-To-Tang-End 4″
  • Swivel Eye Width 2.125″
  • Pin Hole 3.15″(80mm)
