Sale!
5.12"(130mm) x 29.72"(755mm) x 2.56"(65mm) Double Acting Hydraulic Cylinder Fiat-Allis 08296443

5.12″(130mm) x 29.72″(755mm) x 2.56″(65mm) Double Acting Hydraulic Cylinder Fiat-Allis 08296443

Original price was: $349.95.Current price is: $69.99.

SKU: 904862 Category:

Description

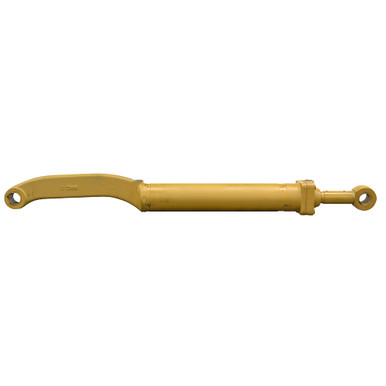

5.12″(130mm) x 29.72″(755mm) x 2.56″(65mm) DOUBLE ACTING HYDRAULCI CYLINDER
Unused old inventory. FIAT-ALLIS double acting hydraulic cylinder. Numbers on cylinder 08296443.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.12″(130mm) x 29.72″(755mm)
  • Barrel Thickness 0.443″
  • Gland Retainer Bolt on
  • Pressure 3000 PSI
  • Rod Dia. 2.56″(65mm)
  • Ports Two, M12-1.75 x 25mm tapped bolt holes on 2.56″(65mm) centers w/ 0.868″(22mm) port hole
  • Retracted Length 73.625
  • Gland Face to Rod Pin Center 9.5″
  • Shpg. 323 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 3.07″
  • Pin-Center-To-Tang-End 2.57″
  • Pin Hole 2.36″(60mm)
  • Base End Tang
  • Width 3.07″
  • Pin-Center-To-Tang-End 2.42″
  • Pin Hole 2.36″(60mm)
