5.25" x 42" x 2.5" Double Acting Hydraulic Cylinder 921334

5.25″ x 42″ x 2.5″ Double Acting Hydraulic Cylinder 921334

Original price was: $449.95.Current price is: $89.99.

SKU: 905085 Category:

Description

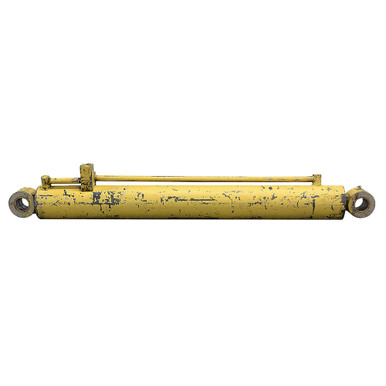

5.25″ x 42″ x 2.5″ DA HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 921334. Cylinder has cracked wiper and bad rod seals.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke5.25″ x 42″
  • Barrel Thickness 0.373″
  • Gland Retainer Threaded in
  • Pressure3000 PSI max.
  • Rod Dia.2.5″
  • Ports SAE 12
  • Retracted Length 58.625″
  • Gland Face to Rod Pin Center 3.125″
  • Shpg. 296 lbs.
END MOUNTINGS
  • Rod End Tang
  • Thickness, Max 3.75″
  • Pin-Center-To-Tang-End 2.37″
  • Pin Hole 2-1/4″
  • Base End Tang
  • Thickness, Max 3.75″
  • Pin-Center-To-Tang-End 2.37″
  • Pin Hole 2-1/4″
