Description

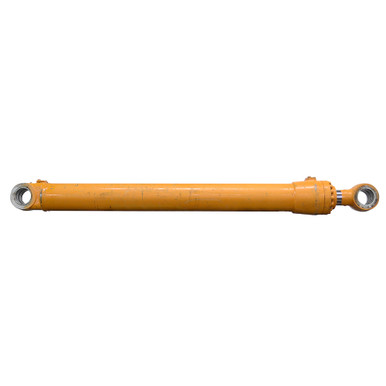

5.29″(135mm) x 52.92″(1345mm) x 3.54″(90mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. VOLVO double acting hydraulic cylinder. Numbers on cylinder 9-011707242.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5.29″(135mm) x 52.92″(1345mm)
- Barrel Thickness 0.5″
- Gland Retainer Bolt on
- Pressure 3000 PSI
- Rod Dia. 3.54″(90mm)
|
- Ports 4 bolt 3/4″ code 61 flange size 12
- Retracted Length 76″
- Gland Face to Rod Pin Center 6.625″
- Shpg. 520 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 4.71″
- Pin-Center-To-Tang-End 3.17″
- Pin Hole 3.54″(90mm)
|
- Base End Tang
- Width 4.32″
- Pin-Center-To-Tang-End 3.15
- Pin Hole 3.54″(90mm)
|
