5.43 cu in Hydraulic Pump Dynamic GP-F25-89-P-A

Description

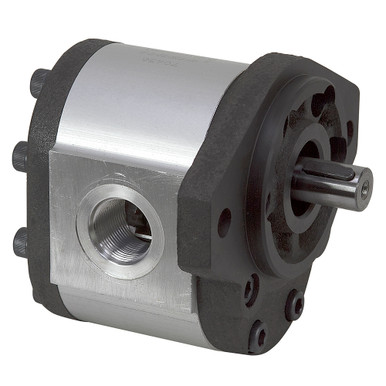

5.43 CU IN DYNAMIC GP-F25-89-P-A HYDRAULIC PUMP
Brand new. Dynamic GP-F25-89-P-A hydraulic gear pump. Constructed of an aluminum center section and cast iron end plates.

SPECIFICATIONS

• Manufacturer Dynamic
• Model Number 70553
• Build Number  GP-F25-89-P-A
• Disp. 5.43 cu. in. / rev.
• Pump Type Gear
• Rotation CCW
• Pressure:
     3625 PSI Peak
• Speed:
     1500 RPM Rated
     2000 RPM Max.
• Flow:
     32.79 GPM Rated
     43.72 GPM Max.
• Mount 2 bolt SAE B
• Shaft 7/8″ dia. x 1.81″ long with 1/4″ wide keyway
• Rqd. Filtration 25 micron
• Inlet Port SAE 20
• Outlet Port SAE 16
• Size 6.93″ x 6.85″ x 6.32″
• Shpg. 28 lbs.
