5.48"(140mm) x 63"(1600mm) x 3.54"(90mm) Double Acting Hydraulic Cylinder 1040-94051

5.48″(140mm) x 63″(1600mm) x 3.54″(90mm) Double Acting Hydraulic Cylinder 1040-94051

Original price was: $849.95.Current price is: $169.99.

SKU: 904475 Category:

Description

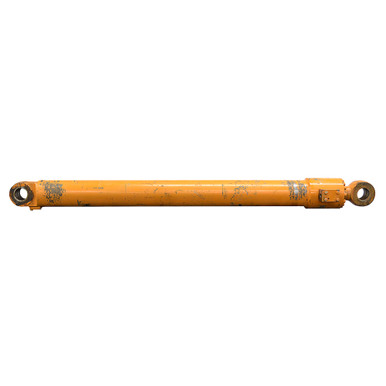

5.48″(140mm) x 63″(1600mm) x 3.54″(90mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 1040-94051.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.48″(140mm) x 63″(1600mm)
  • Barrel Thickness 0.597″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 3.54″(90mm)
  • Extend Port 4 bolt flange with  0.95″ port hole and M10 x 1.5 drilled and tapped holes on 1.768″ x 1.59″ centers, 1.234″ deep
  • Retract Port 4.25″ x 3″ x 2.5″ manifold block with 4 bolt 1″ code 61 size 16 flange
  • Retracted Length 86.25″
  • Gland Face to Rod Pin Center 5.25″
  • Shpg. 661 lbs.
END MOUNTINGS
  • Rod End Tang
  • Thickness, Max 3.93″
  • Pin-Center-To-Tang-End 3.21″
  • Pin Hole 3.16″(80mm)
  • Base End Tang
  • Thickness, Max 3.93″
  • Pin-Center-To-Tang-End 2.92″
  • Pin Hole 3.16″(80mm)
