Description

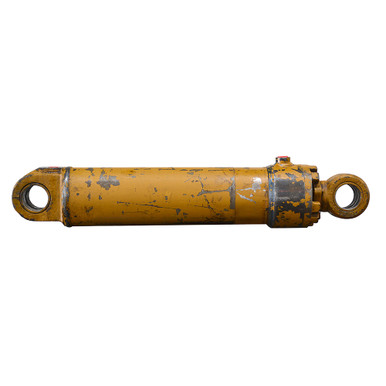

5.5″ x 17.25″ x 2.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 70625119.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5.5″ x 17.25″
- Barrel Thickness 0.25″
- Gland Retainer Threaded in
- Pressure 3000 PSI
- Rod Dia. 2.5″
|
- Extend Port 4 bolt 1″ code 61 flange size 16
- Retracted Length 31.375″
- Gland Face to Rod Pin Center 2.875″
- Shpg. 138 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 3.25″
- Pin-Center-To-Tang-End 2.34″
- Pin Hole 2-1/2″
|
- Base End Tang
- Width 3.54
- Pin-Center-To-Tang-End 2.43″
- Pin Hole 2-1/2″
|
