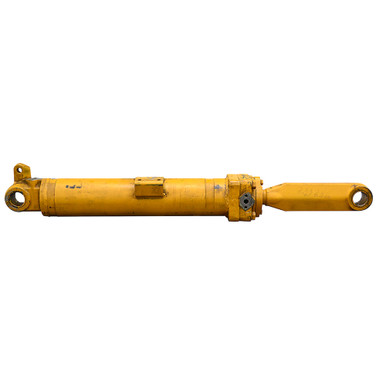

5.5″ x 19.625″ x 2.125″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 982482M92
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5.5″ x 19.625″
- Barrel Thickness 0.380″
- Gland Retainer Bolt on gland
- Pressure 3000 PSI max.
- Rod Dia. 1″
|
- Ports Two bolt flange with 0.636″ ports with M10-1.5 x 1.125″ bolt holes on 1.564″ centers
- Retracted Length 46.5″
- Gland Face to Rod Pin Center 13.5″
- Shpg. 191 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Thickness, Max 2.75″
- Pin-Center-To-Tang-End 1.90″
- Pin Hole 50mm
|
- Base End Tang
- Thickness, Max 2.75″
- Pin-Center-To-Tang-End 1.93″
- Pin Hole 50mm
|
