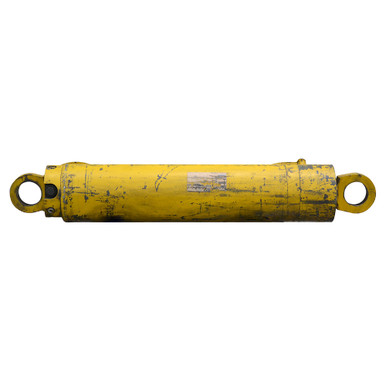

5.5" x 24" x 2.75" Double Acting Hydraulic Cylinder

5.5″ x 24″ x 2.75″ Double Acting Hydraulic Cylinder

Original price was: $349.95.Current price is: $69.99.

SKU: 904843 Category:

Description

5.5″ x 24″ x 2.75” DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Cylinder has two cartridge valves with numbers IGE CN20S W44 923.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.5″ x 24″
  • Barrel Thickness 0.37″
  • Gland Retainer Threaded in gland
  • Pressure 3000 PSI
  • Rod Dia. 2.75″
  • Ports SAE 8
  • Retracted Length 38″
  • Gland Face to Rod Pin Center 2.75″
  • Shpg. 221 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 1.365″
  • Pin-Center-To-Tang-End 2.22″
  • Pin Hole 2.81″(71mm)
  • Base End Tang
  • Width 1.365″
  • Pin-Center-To-Tang-End 2.22″
  • Pin Hole 2.81″(71mm)
