5.5 x 37.25 x 3.177 (80mm) Double Acting Hydraulic Cylinder P/N 73133987

5.5 x 37.25 x 3.177 (80mm) Double Acting Hydraulic Cylinder P/N 73133987

Original price was: $579.95.Current price is: $115.99.

SKU: 902531 Category:

Description

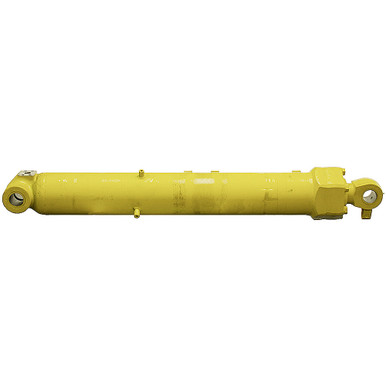

5.5″ x 37.25″ x 3.177″ (80mm) DA HYDRAULIC CYLINDER
New. Welded cylinder with bolt-on gland retainer. P/N 73133987.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke5-1/2″ x 37-1/4″
  • Barrel Thickness10mm (0.407″)
  • Pressure 3000 PSI max.
  • Rod Dia. 80mm (3.177″)
  • Ports1″ Four Bolt Flange, Code 61
  • Retracted Length 51-3/8″
  • Shpg. 350 lbs.
END MOUNTINGS
  • Rod End Tang
  • Max Thickness 3-1/4″
  • Pin Center to Tang End 2-1/4″
  • Pin Hole 2″
  • Base End Crosstube
  • Width 6-3/4″
  • O.D. 4-1/4″
  • Pin Hole 2″
