Sale!
5.5" x 50.5" x 3.93"(100mm) Double Acting Hydraulic Cylinder Hyundai 31E5-0007

5.5″ x 50.5″ x 3.93″(100mm) Double Acting Hydraulic Cylinder Hyundai 31E5-0007

Original price was: $479.95.Current price is: $95.99.

SKU: 904578 Category:

Description

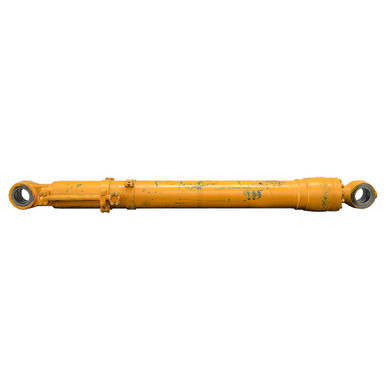

5.5″ x 50.5″ x 3.93″(100mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. HYUNDAI numbers on cylinder 31E5-0007.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.5″ x 50.5″
  • Barrel Thickness 0.507″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 3.93″(100mm)
  • Ports 4 bolt 1″ code 61 flange size 16
  • Retracted Length 79″
  • Gland Face to Rod Pin Center 5.75″
  • Shpg. 655 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 4.16″
  • Pin-Center-To-Tang-End 3.18″
  • Pin Hole 3.56″(90mm)
  • Base End Tang
  • Width 4.19″
  • Pin-Center-To-Tang-End 3.17″
  • Pin Hole 3.56″(90mm)
