Description

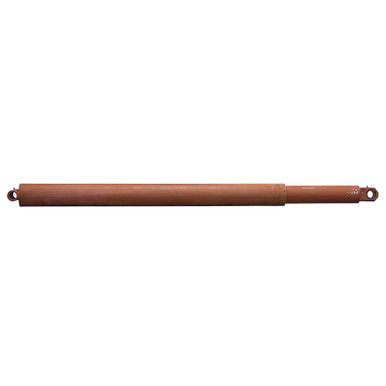

5.5″ x 60.75″ x 5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused, old inventory. LEACH model 718898 A50518C5 welded cylinder with thread-in gland cap.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5-1/2″ x 60-3/4″
- Barrel Thickness 3/8″
- Pressure 3000 PSI max.
- Rod Dia. 5″, Hollow
- Rod Thickness 1/4″
|
- Extend Port SAE 12
- Retract Port SAE 8
- Retracted Length 97-1/2″
- Shpg. 360 lbs.
|
| END MOUNTINGS |
- Rod End Tang w/ Swivel Eye
- Max Thickness 2-7/16″
- Pin Center to Tang End 2-1/8″
- Pin Hole 2″
|
- Base End Crosstube
- Width 7-3/4″
- O.D. 3″
- Pin Hole 2″
|
