Description

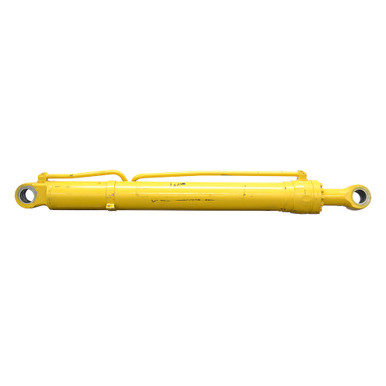

5.51″(140mm) x 49.75″(1263mm) x 3.94″(100mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. KOMATSU double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5.51″(140mm) x 49.75″(1263mm)
- Barrel Thickness 0.5″
- Gland Retainer Bolt on
- Pressure 3000 PSI
- Rod Dia. 3.94″(100mm)
|
- Ports 4 bolt 3/4″ code 61 flange size 12
- Retracted Length 74.375″
- Gland Face to Rod Pin Center 9.375″
- Shpg. 574 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 3.79″
- Pin-Center-To-Tang-End 2.95″
- Pin Hole 3.15″(80mm)
|
- Base End Tang
- Width 3.76″
- Pin-Center-To-Tang-End 2.94″
- Pin Hole 3.15″(80mm)
|
