Description

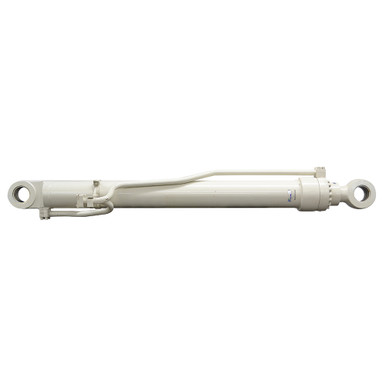

5.51″(140mm) x 56.69″(1440mm) x 3.74″(95mm) DA HYD CYL
Unused old inventory. DOOSAN left hand double acting hydraulic boom cylinder. Numbers on cylinder 440-00430.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke5.51″(140mm) x 56.69″(1440mm)
- Barrel Thickness 0.5″
- Gland Retainer Bolt on
- Pressure3000 PSI
- Rod Dia. 3.74″(95mm)
|
- Ports 4 bolt 1″ code 61 flange size 16
- Retracted Length78.75″
- Gland Face to Rod Pin Center 5.375″
- Shpg. 667 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Width 3.85″
- Pin-Center-To-Tang-End 3.63″
- Pin Hole 3.54″(90mm)
|
- Base End Tang
- Width 3.84″
- Pin-Center-To-Tang-End 3.32″
- Pin Hole 3.54″(90mm)
|
