5.51"(140mm) x 58.25"(1480mm) x 3.73"(95mm) Double Acting Hydraulic Cylinder Volvo 1146-04660

5.51″(140mm) x 58.25″(1480mm) x 3.73″(95mm) Double Acting Hydraulic Cylinder Volvo 1146-04660

Original price was: $949.95.Current price is: $189.99.

SKU: 904654 Category:

Description

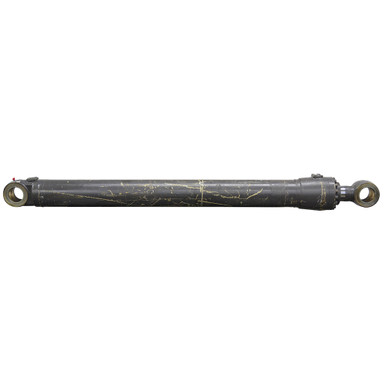

5.51″(140mm) x 58.25″(1480mm) x 3.73″(95mm) DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder. VOLVO numbers on cylinder 1146-04660.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke5.51″(140mm) x 58.25″(1480mm)
  • Barrel Thickness 0.575″
  • Gland Retainer Bolt on gland
  • Pressure3000 PSI
  • Rod Dia.3.73″(95mm)
  • Ports 4 bolt 1″ code 61 flange size 16
  • Retracted Length81.5″
  • Gland Face to Rod Pin Center 6.25″
  • Shpg. 573 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 4.71″
  • Pin-Center-To-Tang-End 3.16″
  • Pin Hole 3.55″(90mm)
  • Base End Tang
  • Width 4.34″
  • Pin-Center-To-Tang-End 3.18″
  • Pin Hole 3.55″(90mm)
