Name: 5.512" (140mm) x 57.625" (1464mm) x 3.937" (100mm) Double Acting Hydraulic Cylinder 233 481
Brand: industrialgeardepot.com
SKU: 904019
Price: 201.99 USD
Availability: InStock

5.512″ (140mm) x 57.625″ (1464mm) x 3.937″ (100mm) Double Acting Hydraulic Cylinder 233 481

SKU: 904019 Category: hot sale

Description

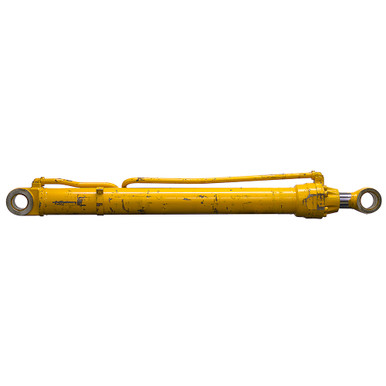

5.512″ (140mm) x 57.625″ (1464mm) x 3.937″ (100mm) DOUBLE ACTING HYDRAULIC CYLINDER
New, welded cylinder with bolt-on gland cap. “233 481” stamped into cylinder barrel.

SPECIFICATIONS
Double Acting Bore x Stroke 140mm (5.512″) x 57-5/8″ Barrel Thickness 11mm (0.433″) Pressure 3000 PSI max. Rod Dia. 100mm (3.937″)	Ports 3/4″ Four-Bolt Flange w/ M10 bolts, Code 61 Retracted Length 82″ Shpg. 660 lbs.
END MOUNTINGS
Rod End Tang Max Thickness 4-9/16″ Pin Center to Tang End 3-7/32″ Pin Hole 100mm (3.937″)	Base End Tang Max Thickness 4-9/16″ Pin Center to Tang End 3-3/8″ Pin Hole 90mm (3.543″)
