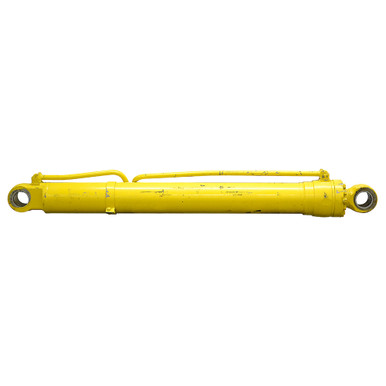

5.512"(140mm) x 50.875" x 3.937"(100mm) Double Acting Hydraulic Cylinder

5.512″(140mm) x 50.875″ x 3.937″(100mm) Double Acting Hydraulic Cylinder

Original price was: $579.95.Current price is: $115.99.

SKU: 904044 Category:

Description

5.512″ (140mm) x 50.875″ x 3.937″ (100mm) DOUBLE ACTING HYDRAULIC CYLINDER
New, welded cylinder with bolt-on gland cap.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 140mm (5.512″) x 50-7/8″
  • Barrel Thickness 13mm (0.512″)
  • Pressure 3000 PSI max.
  • Rod Dia. 100mm (3.937″)
  • Ports 3/4″ Four-Bolt Split Flange, Code 61
  • Retracted Length 70-3/4″
  • Shpg. 585 lbs.
END MOUNTINGS
  • Rod End Tang
  • Max Thickness 3-13/16″
  • Pin Center to Tang End 2-15/16″
  • Pin Hole 80mm (3.149″)
  • Base End Tang
  • Max Thickness 3-3/4″
  • Pin Center to Tang End 2-15/16″
  • Pin Hole 80mm (3.149″)
