Description

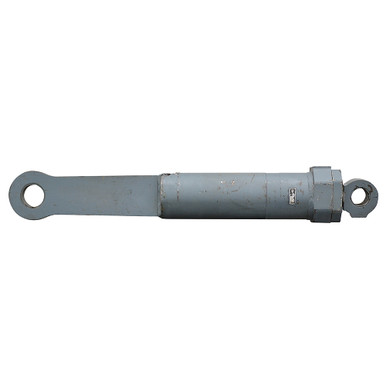

5.52″(140mm) x 15.187″(385mm) x 2.76″(70mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. HUNGER HYDRAULIC double acting hydraulic cylinder. Numbers on cylinder 160962-950-1977.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5.52″(140mm) x 15.187″(385mm)
- Barrel Thickness 0.538″
- Gland Retainer Bolt on
- Pressure 3000 PSI
- Rod Dia. 2.76″(70mm)
|
- Ports 4 bolt 1″ code 61 flange size 16
- Retracted Length 46″
- Gland Face to Rod Pin Center 2.875″
- Shpg. 265 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 2.76″
- Pin-Center-To-Tang-End 2.56″
- Pin Hole 2.36″(60mm)
|
- Base End Tang
- Width 1.59″
- Pin-Center-To-Tang-End 3.48″
- Pin Hole 3.15″(80mm)
|
