5.71"(145mm) x 53.5"(1359mm) x 3.73"(95mm) Double Acting Hydraulic Cylinder AT205923

5.71″(145mm) x 53.5″(1359mm) x 3.73″(95mm) Double Acting Hydraulic Cylinder AT205923

Original price was: $599.95.Current price is: $119.99.

SKU: 904662 Category:

Description

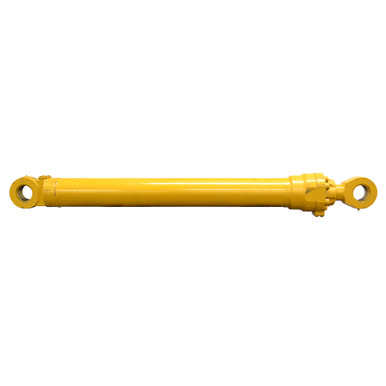

5.71″(145mm) x 53.5″(1359mm) x 3.73″(95mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder AT205923.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.71″(145mm) x 53.5″(1359mm)
  • Barrel Thickness 0.575″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 3.73″(95mm)
  • Ports 4 bolt 1″ code 62 flange size 16
  • Retracted Length 76.75″
  • Gland Face to Rod Pin Center 5.75″
  • Shpg. 608 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 3.85″
  • Pin-Center-To-Tang-End 3.75″
  • Pin Hole 3.55″(90mm)
  • Base End Tang
  • Width 3.85″
  • Pin-Center-To-Tang-End 3.75″
  • Pin Hole 3.55″(90mm)
