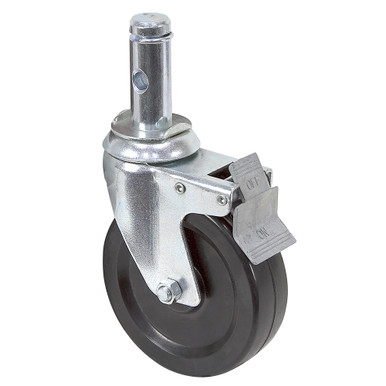

5″ x 1-1/4″ Scaffold Caster w/Brake FP5SC106N8SM

Description

5″ x 1-1/4″ SWIVEL GRIP RING CASTER WITH WHEEL AND SWIVEL LOCK
New, swivel grip ring stem caster with solid rubber wheel. Originally intended for use on scaffolds. Circular mounting face has two ends bent upwards 90 degrees on either side of the stem, inside width of 1-9/16″. Wheel and swivel lock. Swivel has double-row ball bearings. Zinc plated caster yoke.

SPECIFICATIONS

• Model Number FP5SC106N8SM
• Wheel Diameter 5″ dia.
• Wheel Width 1-1/4″ Wide
• Load Capacity 264 lbs.
• Mounting Height 6-3/8″
• Brake Wheel and Swivel Lock
• Mount 26mm (1.025″) dia. x 2-3/4″ w/ circlip
• Stem through Holes 7/16″ dia.
• Wheel Tread Material Rubber
• Wheel Tread Color Black
• Caster Wheel Core Material Rubber
• Caster Wheel Bearing None
• Shpg. 4 lbs.
