Description

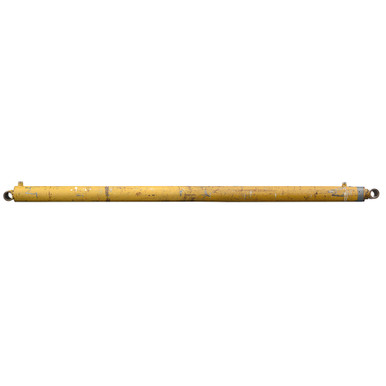

5″ x 119.875″ x 4″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Cylinder has bad wiper and leak from rod seal. Numbers on cylinder 61530-080031.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5″ x 119.875″
- Barrel Thickness 0.296″
- Gland Retainer Threaded in gland
- Pressure 3000 PSI
- Rod Dia. 4.5″, Hollow
- Rod Thickness 0.45″
|
- Extend Port SAE 16
- Retract Port SAE 12
- Retracted Length 155.5″
- Gland Face to Rod Pin Center 3″
- Shpg. 562 lbs.
|
| END MOUNTINGS |
- Rod End Cross-Tube
- O.D. 3.5″
- Width 5.75″
- Pin Hole 2.56″(65mm)
|
- Base End Cross-Tube
- O.D. 3.5″
- Width 5.75″
- Pin Hole 2.56″(55mm)
|
