Description

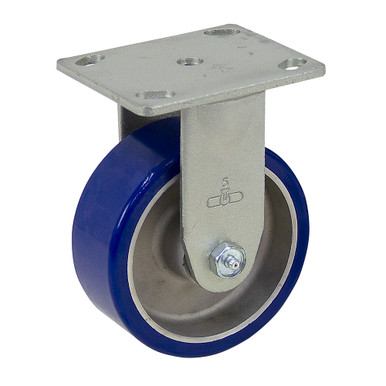

5″ x 2″ RIGID PLATE CASTER
Brand New, WC6650R-01-PAL rigid plate caster with polyurethane coated aluminum wheel. Case hardened double ball raceways provide extra capacity and durability. Top plate and legs are made out of 1/4″ cold forged steel and corrosion-resistant zinc plated finish. 5/8″ nut and bolt kingpin and 2-1/2″ for spacing with 1/2″ zerk axle and lock nut. Precision molded high quality polyurethane chemically bonded to a smooth polished aluminum core. The combination of slight crowned tread and high quality annular ball bearings provide exceptionally low effort to start up and push a load. Offers floor protection, is non marking, and non-conductive. Resistant to most chemicals, oils, grease, cleaning agents, solvents, and water. Great for foodservice and institutional applications. Meets NSF and UL sanitation standards.
SPECIFICATIONS
- Model Number WC6650R-01-PAL
- Wheel Diameter 5″ dia.
- Wheel Width 2″ Wide
- Load Capacity 900 lbs.
- Mounting Height 6-1/2″
- Top Plate 4″ x 4-1/2″ x 1/4″ thick
- Mount 4 holes 2-5/8″ x 3-5/8″ slotted to 3″ x 3″ centers
- Bolt Holes 3/8″ dia.
- Wheel Tread Material Polyurethane
- Wheel Tread Color Blue
- Wheel Tread Durometer 95 Shore A
- Caster Wheel Core Material Aluminum
- Caster Wheel Bearing Roller
- Wheel Temperature Rating -40ºF to 180ºF
- Shpg. 6 lbs.
