Description

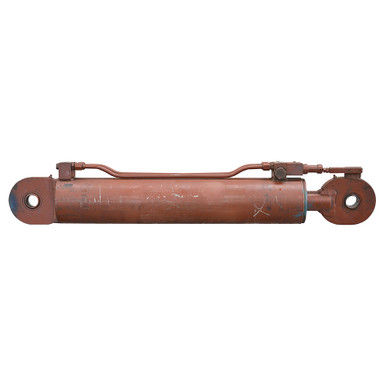

5″ x 23.875″ x 2.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Cylinder has closed plunger activated on rod end with adjustable stop. Numbers on cylinder A0216830 SP TKT 024465
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5″ x 23.875″
- Barrel Thickness 0.383″
- Gland Retainer Threaded in gland
- Pressure 3000 PSI max.
- Rod Dia. 2.5″
|
- Ports SAE 6 w/ SAE 12 cartridge valve (cartridge not included)
- Retracted Length 39.75″
- Gland Face to Rod Pin Center 5.75″
- Shpg. 150 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Eye
- Thickness, Max 1.15″
- Pin-Center-To-Swivel Eye-End 2.97″
- Swivel Eye Width 1.17″
- Pin Hole 1-1/2″
|
- Base End Swivel Eye
- Thickness, Max 1.16″
- Pin-Center-To-Swivel Eye-End 2.95″
- Swivel Eye Width 1.18″
- Pin Hole 1-1/2″
|
