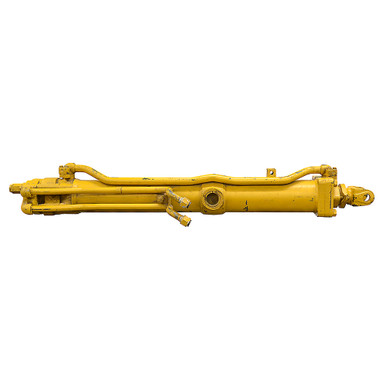

5" x 36.75" x 2.5" Double Acting Hydraulic Cylinder

5″ x 36.75″ x 2.5″ Double Acting Hydraulic Cylinder

Original price was: $379.95.Current price is: $75.99.

SKU: 904593 Category:

Description

5″ x 36.75″ x 2.5″ DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke5″ x 36.75″
  • Barrel Thickness 0.254″
  • Gland Retainer Bolt on gland
  • Pressure3000 PSI
  • Rod Dia. 2.5″
  • Ports JIC 16
  • Retracted Length25.25″
  • Gland Face to Rod Pin Center3.25″
  • Shpg. 265 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width 4.83″
  • Inside Width 3.19″
  • Throat Depth 2.78″
  • Pin Hole 1-1/4″
  • Base End Female Trunnion
  • Pin Outside/Inside Width 8″ /5.5″
  • Pin-Center-To-Rod Pin Center 25.25″
  • Pin Center To Base End 25.375″
  • Pin Diameter2″
