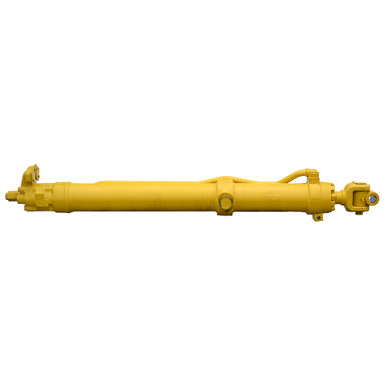

5" x 42.875" x 2.5" Double Acting Hydraulic Cylinder 73116738

5″ x 42.875″ x 2.5″ Double Acting Hydraulic Cylinder 73116738

Original price was: $349.95.Current price is: $69.99.

SKU: 902537 Category:

Description

5″ x 42.875″ x 2.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Model 73116738

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5″ x 42.875″
  • Barrel Thickness 0.233″
  • Gland Retainer Threaded In Gland w/ bolt on wiper
  • Pressure 3000 PSI max.
  • Rod Dia. 2.5″
  • Ports 4 bolt 1″ code 61 flange size 16
  • Retracted Length 28″ trunnion
  • Shpg. 315 lbs.
END MOUNTINGS
  • Rod End Crosstube Double Swivel Link
  • O.D. 2.98″
  • Width 3.88″
  • Pin Hole 1-1/2″
  • Base End Male Trunnion
  • Pin Outside/Inside Width 11″ / 8″
  • Pin-Center-To-Rod Pin Center 28″
  • Pin Center To Base End 42.5″
  • Pin Diamter 2.51″
