Description

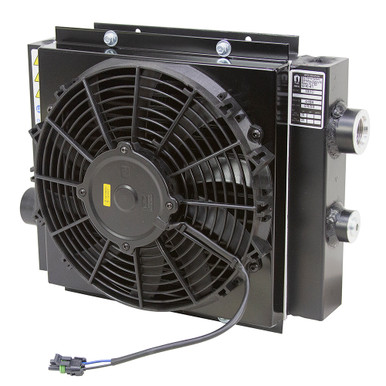

50 GPM AKG DCS16-12 Oil Cooler w/12 Volt DC Fan
Brand new AKG DCS series oil cooler that features aluminum construction, DC fan, leak-free SAE O-Ring connections and mounting tabs.
No internal pressure bypass.
SPECIFICATIONS
- Manufacturer AKG
- Model Number DCS16-12
- AKG Item 1102291400
- Pressure 252 PSI max.
- Temperature 252 F° max.
- Construction Aluminum
- Flow 50 GPM
- Fan Motor Voltage 12 Volts DC
- Amps 10
- Heat Removed Based On 50 F°
Entering Temperature Difference (BTU/HR) 17058 - Airflow Direction Pull
- Port Size SAE 16
- Drain/Temperature Sensor Port Size SAE 8
- Mount Four 1/2″ slotted holes on 5.87″ x 12.68″ centers
- Overall Depth (in.) 6.5
- Overall Width (in.) 15.74
- Overall Height (in.) 13.5
- Shpg. 30 lbs.
| 115° F Temperature Control Switch Index 8037455 115NO AKG TC-115-WL | 904849 |
| 145° F Temperature Control Switch Index 8037456 145NO AKG TC-140-WL | 904850 |
