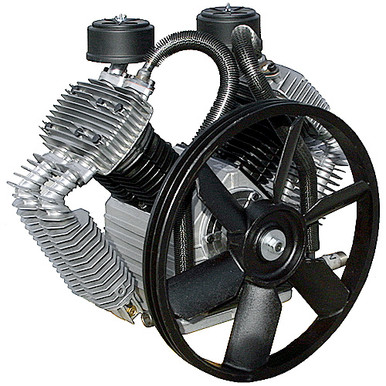

54.58 CFM AIR COMPRESSOR TWO STAGE 15 HP
Brand new ROL-AIR model K60. Two-stage compressor with aluminum crankcase for light weight and good heat dissipation. Cast iron cylinders for long life and greater wear resistance. Crankshaft supported on roller bearings with replaceable bearings for connector rods. Reed valves. Deep fins for cooling on output lines and intercooler. Includes oil sight gauge and automotive style air filter.
SPECIFICATIONS
- Cylinders Four
- Stages Two
- Flow 54.58 CFM max.
- Pressure 175 PSI max.
- Power Reqd. 15 HP max.
- Speed 1100 RPM max.
- Rotation CCW
- Ports 1″ NPT
- Flywheel 21.65″ dia.
- 1st Stage Bore/Stroke
4.13″ x 2/3.31″ - 2nd Stage Bore/Stroke
2.05″ x 2/3.31″ - Oil Capacity 3 Qt.
- Mount Base 9.60″ x 11.73″ centers
- Size 28.9375″ x 17.5″ x 23.625″
- Shpg. 255 lbs.
