Description

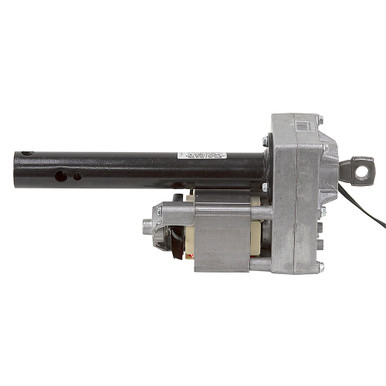

6.125″ STROKE 240 VOLT AC LINEAR ACTUATOR
New, ICON HEALTH AND FITNESS model 343505 capacitor-start linear actuator. Power extend and power retract, rated to push up to 900 lb., retract under no load. Hall effect sensor connected to internal gearing.
SPECIFICATIONS
- Brand Icon Health & Fitness
- Model Number 343505
- Voltage 240 Volt AC, 50 Hz
- Amperage 0.7 Amps
- Capacity 900 lb. Push
- Thread 3/4″-6 Acme thread
- Stroke 6-1/8″
- Extension Speed 0.084″ / sec. (no load)
- Extension Time 72.5 seconds to Full Stroke, No Load
- Limit Switches NA
- Direction Reversible
- Duty Intermittent
- Retracted length 10-1/4″
- Rod end pin hole 3/8″
- Base end pin hole 3/8″
- Size 11.125″ x 4.25″ x 3.125″
- Shpg. 7 lbs.
