Description

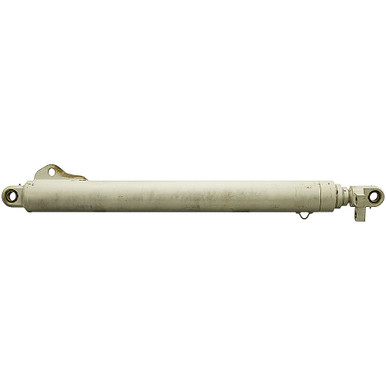

6.25″ x 168″ DOUBLE-ACTING TELESCOPING CYLINDER
Unused, old inventory. McNeilus part number AA186997, double acting telescoping cylinder. Both ports in the rod end.
| SPECIFICATIONS |
- Double Acting, Telescoping
- Main Cyl Bore x Total Stroke 6-1/4″ X 168″
- Number of Stages 3
- Pressure 2000 PSI max.
- Rod Dia. 2-3/4″
|
- Extend Port SAE 20
- Retract Port SAE 16
- Retracted Length 80-1/4″
- Shpg. 560 lbs.
|
| END MOUNTINGS |
- Rod End Tang w/ Swivel Eye
- Max Thickness 2-1/4″
- Pin Center to Tang End 2-3/8″
- Pin Hole 2″
|
- Base End Tang w/ Swivel Eye
- Max Thickness 2-1/4″
- Pin Center to Tang End 2-3/8″
- Pin Holes 2″
|
