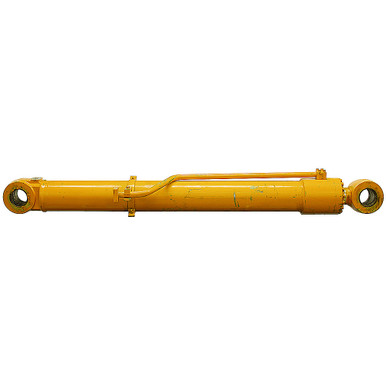

Name: 6.25" x 59" x 4.134" Double Acting Hydraulic Cylinder 703H40030-01 RH Boom Cylinder
Brand: industrialgeardepot.com
SKU: 902575
Price: 272.79 USD
Availability: InStock

6.25″ x 59″ x 4.134″ Double Acting Hydraulic Cylinder 703H40030-01 RH Boom Cylinder

SKU: 902575 Category: hot sale

Description

6.25″ x 59″ x 4.134″ (105mm) DOUBLE ACTING HYDRAULIC CYLINDER
New, model 703H40030-01 RH BOOM CYL. Welded cylinder with external bolt-on gland cap.

SPECIFICATIONS
Double Acting Bore x Stroke 6-1/4″ x 59″ Barrel Thickness 9/16″ Pressure 5000 PSI max. Rod Dia. 4.134″ (105mm)	Ports 1″ Four Bolt Flange, Code 62 w/ M12x1.75 tapped bolt holes Retracted Length 82-1/2″ Shpg. 840 lbs.
END MOUNTINGS
Rod End Tang Max Thickness 5-3/4″ Pin Center to Tang End 4-3/16″ Pin Hole 3.937″ (100mm)	Base End Tang Max Thickness 5-13/16″ Pin Center to Tang End 4-3/16″ Pin Hole 3.937″ (100mm)
