6.25"(159mm) x 60.25"(1530mm) x 4.125"(105mm) Double Acting Hydraulic Cylinder Volvo 1146-07440

6.25″(159mm) x 60.25″(1530mm) x 4.125″(105mm) Double Acting Hydraulic Cylinder Volvo 1146-07440

Original price was: $1,049.95.Current price is: $209.99.

SKU: 904648 Category:

Description

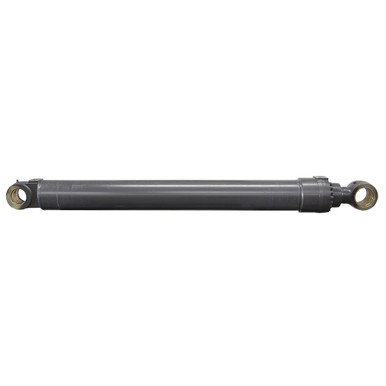

6.25″(159mm) x 60.25″(1530mm) x 4.125″(105mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. VOLVO numbers on cylinder 1146-07440.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 6.25″(159mm) x 60.25″(1530mm)
  • Barrel Thickness 0.631″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 4.125″(105mm)
  • Ports 4 bolt 1-1/4″ code 62 flange size 20
  • Retracted Length 84.5″
  • Gland Face to Rod Pin Center 5.375″
  • Shpg. 780 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 4.72″
  • Pin-Center-To-Tang-End 3.31″
  • Pin Hole 4.33″(110mm)
  • Base End Tang
  • Width 4.72″
  • Pin-Center-To-Tang-End 3.22″
  • Pin Hole 3.95″(100mm)
