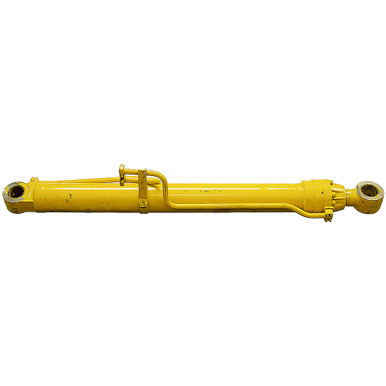

Name: 6.279"(160mm) x 61.75"(1568.5mm) x 3.343"(85mm) Double Acting Hydraulic Cylinder 31E7-04791
Brand: industrialgeardepot.com
SKU: 902457
Price: 249.99 USD
Availability: InStock

6.279″(160mm) x 61.75″(1568.5mm) x 3.343″(85mm) Double Acting Hydraulic Cylinder 31E7-04791

SKU: 902457 Category: hot sale

Description

6.279″ (160mm) x 61.75″ (1568.5mm) x 3.343″ (85mm) DOUBLE ACTING HYDRAULIC CYLINDER
New, welded cylinder with external bolt-on gland cap. “31E7-04791” stamped into cylinder barrel.

SPECIFICATIONS
Double Acting Bore x Stroke 6.279″ (160m) x 61-3/4″ (1568.5mm) Barrel Thickness 9/16″ Pressure 5000 PSI max. Rod Dia. 3.343″ (85mm)	Ports 1″ Four Bolt Flange, Code 61 Retracted Length 89″ Shpg. 890 lbs.
END MOUNTINGS
Rod End Tang Max Thickness 4-15/16″ Pin Center to Tang End 3-7/8″ Pin Hole 4.346″ (110mm)	Base End Tang Max Thickness 4-9/16″ Pin Center to Tang End 3-1/2″ Pin Hole 3.945″ (100mm)
