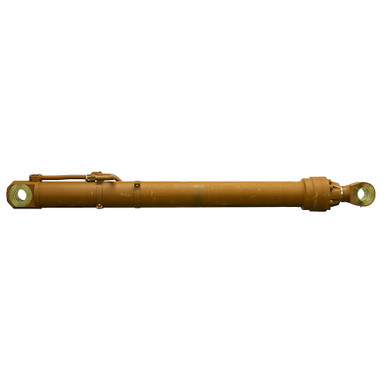

Name: 6.29"(160mm) x 72.56"(1843mm) x 4.73"(120mm) Double Acting Hydraulic Cylinder Ishi Kawajima 846 531
Brand: industrialgeardepot.com
SKU: 902459
Price: 329.00 USD
Availability: InStock

6.29″(160mm) x 72.56″(1843mm) x 4.73″(120mm) Double Acting Hydraulic Cylinder Ishi Kawajima 846 531

SKU: 902459 Category: hot sale

Description

6.29″(160mm) x 72.56″(1843mm) x 4.73″(120mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused, old inventory. ISHI KAWAJIMA CONSTRUCTION EQUIPMENT CO model 846 531 welded cylinder with bolt-on gland cap.

SPECIFICATIONS
Double Acting Bore x Stroke 6.29″(160mm) x 72.56″(1843mm) Barrel Thickness 0.614″ Pressure 3000 PSI max. Rod Dia. 4.73″(120mm)	Ports 1″ BSPP Retracted Length 98-1/2″ Shpg. 1100 lbs.
END MOUNTINGS
Rod End Tang Max Thickness 5.10″(130mm) Pin Center to Tang End 3-9/16″ Pin Hole 90mm(3.55″)	Base End Tang Max Thickness 5.10″(130mm) Pin Center to Tang End 3-15/16″ Pin Hole 90mm(3.55″)
