Description

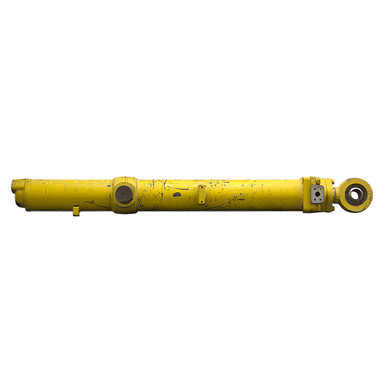

6.299″ (160mm) x 56.811″ (1443mm) x 3.543″ (90mm) DA HYDRAULIC CYLINDER
New, welded cylinder with bolt-on gland cap. Rod wiper damaged, sold as-is. Piston has cushion valves at end of extend and retract strokes. “195-063-01800” stamped into cylinder barrel.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke160mm (6.299″) x 1443mm (56.811″)
- Barrel Thickness10mm (0.394″)
- Pressure 3000 PSI max.
- Rod Dia. 90mm (3.543″)
|
- Extend Port Two-Bolt Flange with 45mm (1.772″) I.D. Port
- Retract Port 1-1/4″ Four-Bolt Flange w/ M10 bolts, Code 61
- Retracted Length 51-1/4″
- Shpg. 580 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang w/ Swivel Eye
- Max Thickness 3-9/16″
- Pin Center to Tang End 2-7/8″
- Pin Hole 55mm (2.165″)
|
- Trunnion Male
- Outside Width 13-3/4″
- Inside Width 8-3/8″
- Pin Center to Rod Pin Center 51-1/4″
- Pin Center to Base End 24-3/4″
- Pin Dia. 95mm (3.740″)
|
