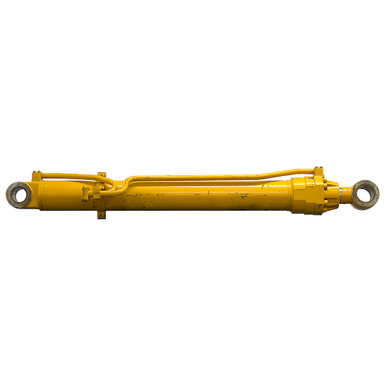

6.299"(160mm) x 59" x 4.134"(105mm) Double Acting Hydraulic Cylinder Hyundai H6A0147R Right

6.299″(160mm) x 59″ x 4.134″(105mm) Double Acting Hydraulic Cylinder Hyundai H6A0147R Right

Original price was: $1,291.95.Current price is: $258.39.

SKU: 904030 Category:

Description

6.299″ (160mm) x 59″ x 4.134″ (105mm) DA HYDRAULIC CYLINDER
New, HYUNDAI model H6A0147R welded cylinder with bolt-on gland cap.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke160mm (6.299″) x 59″ (1498.6mm)
  • Barrel Thickness14mm (0.551″)
  • Pressure 3000 PSI max.
  • Rod Dia. 105mm (4.134″)
  • Ports1″ Four-Bolt Flange, Code 62
  • Retracted Length 83-1/4″
  • Shpg. 820 lbs.
END MOUNTINGS
  • Rod End Tang
  • Max Thickness 5-1/8″
  • Pin Center to Tang End 3-1/2″
  • Pin Hole 105mm (4.134″)
  • Base End Tang
  • Max Thickness 5-1/2″
  • Pin Center to Tang End 3-5/16″
  • Pin Hole 90mm (3.543″)
