Description

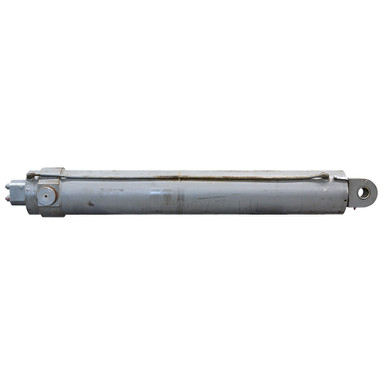

6.5″ x 41.5″ x 3″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Cylinder has cartridge valve on base end CBEG 0EJ1 LCN 0A62
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 6.5″ x 41.5″
- Barrel Thickness 0.506″
- Gland Retainer Threaded in gland
- Pressure 3000 PSI
- Rod Dia. 3″
|
- Ports SAE 4
- Retracted Length 52.125″
- Gland Face to Rod Pin Center 3.25″
- Shpg. 444 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Thickness, Max 3.23″
- Pin-Center-To-Tang-End 2.38″
- Pin Hole 1-3/4″
|
- Base End Female Trunnion
- Pin Outside/Inside Width 11.25″ / 8.25″
- Pin-Center-To-Rod Pin Center 52.125″
- Pin Center To Base End 55.75″
- Pin Diameter 3″
|
