6.5" x 42.25" x 4" Double Acting Hydraulic Cylinder 65315 1V2022555A

6.5″ x 42.25″ x 4″ Double Acting Hydraulic Cylinder 65315 1V2022555A

Original price was: $629.95.Current price is: $125.99.

SKU: 904673 Category:

Description

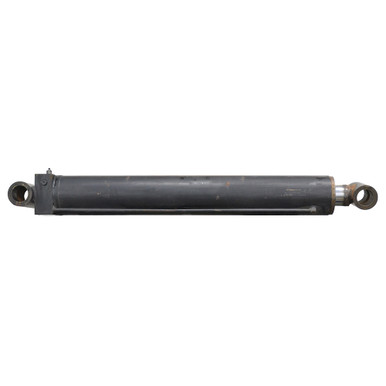

6.5″ x 42.25″ x 4″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Cylinder has unmarked adjustable cartridge valve. Numbers on cylinder 65315 1V2C022555A.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 6.5″ x 42.25″
  • Barrel Thickness 0.5″
  • Gland Retainer Threaded in gland
  • Pressure 3000 PSI
  • Rod Dia. 4″
  • Ports SAE 8
  • Retracted Length 62.5″
  • Gland Face to Rod Pin Center 5.375″
  • Shpg. 473 lbs.
END MOUNTINGS
  • Rod End Cross-Tube
  • O.D. 4.5″
  • Width 7.5″
  • Pin Hole 3″
  • Base End Cross-Tube
  • O.D. 4.5″
  • Width 10.75″
  • Pin Hole 3″
