Description

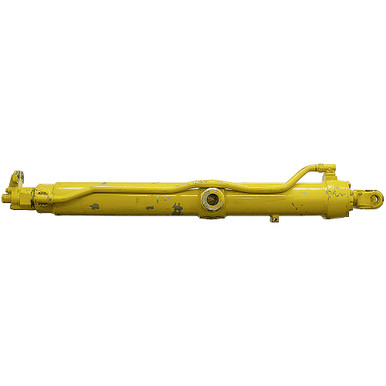

6.5″ x 54″ x 3″ DA LEFT-HAND HYDRAULIC CYLINDER
Unused, old inventory. Fiat-Allis model 73129651 L.H. welded cylinder with thread-in gland cap and bolt-on wiper. Internal cushion valves at end of extend and retract strokes.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke6-1/2″ x 54″
- Barrel Thickness3/8″
- Pressure 3000 PSI max.
- Rod Dia. 3″
|
- Ports1″ Four Bolt Flange, Code 61
- Retracted Length 34-7/8″
- Shpg. 540 lbs.
|
| END MOUNTINGS |
|
- Rod End Clevis
- Outside Width 7″
- Inside Width 4″
- Throat Depth 4-1/8″
- Pin Hole 1-3/4″
|
- Trunnion Female
- Pin Outside Width 11-1/8″
- Pin Inside Width 7-3/16″
- Pin Center to Rod Pin Center 34-7/8″
- Pin Center to Base End 44-1/2″
- Pin Diameter 2-1/2″
|
