6.5"(165mm) x 52.5"(1334mm) x 4.33"(110mm) Double Acting Hydraulic Cylinder

6.5″(165mm) x 52.5″(1334mm) x 4.33″(110mm) Double Acting Hydraulic Cylinder

Original price was: $599.95.Current price is: $119.99.

SKU: 904796 Category:

Description

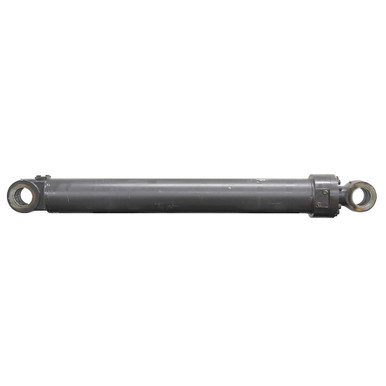

6.5″(165mm) x 52.5″(1334mm) x 4.33″(110mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. VOLVO double acting hydraulic cylinder. Numbers on cylinder 1146-07530.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 6.5″(165mm) x 52.5″(1334mm)
  • Barrel Thickness 0.653″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 4.33″(110mm)
  • Ports 4 bolt 1-1/4″ code 62 flange size 20
  • Retracted Length 74.19″
  • Gland Face to Rod Pin Center 5.625″
  • Shpg. 760 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 4.52″
  • Pin-Center-To-Tang-End 3.49″
  • Pin Hole 3.94″(100mm)
  • Base End Tang
  • Width 4.52″
  • Pin-Center-To-Tang-End 3.81″
  • Pin Hole 3.94″(100mm)
