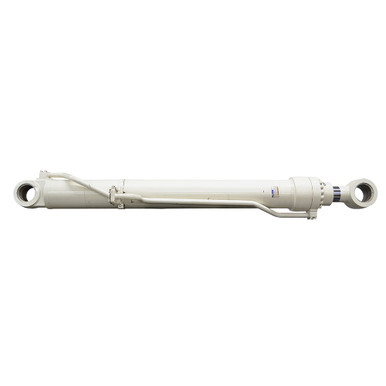

Name: 6.69"(170mm) x 63.375"(1610mm) x 4.53"(115mm) Double Acting Hydraulic Cylinder Doosan K1001341.WH
Brand: industrialgeardepot.com
SKU: 905304
Price: 229.99 USD
Availability: InStock

6.69″(170mm) x 63.375″(1610mm) x 4.53″(115mm) Double Acting Hydraulic Cylinder Doosan K1001341.WH

SKU: 905304 Category: hot sale

Description

6.69″(170mm) x 63.375″(1610mm) x 4.53″(115mm) DA HYD CYL
Unused old inventory. DOOSAN double acting left hand boom hydraulic cylinder. Numbers on cylinder K1001341.WH.

SPECIFICATIONS
Double Acting Bore x Stroke6.69″(170mm) x 63.375″(1610mm) Barrel Thickness 0.586″ Gland Retainer Bolt on Pressure3000 PSI Rod Dia. 4.53″(115mm)	Ports 4 bolt 1″ code 62 flange size 16 Retracted Length90″ Gland Face to Rod Pin Center 8.75″ Shpg. 939 lbs.

END MOUNTINGS
Rod End Tang Width 5.78″ Pin-Center-To-Tang-End 4.154″ Pin Hole 4.725″(120mm)	Base End Tang Width 5.77″ Pin-Center-To-Tang-End 3.8″ Pin Hole 4.334″(110mm)
