Description

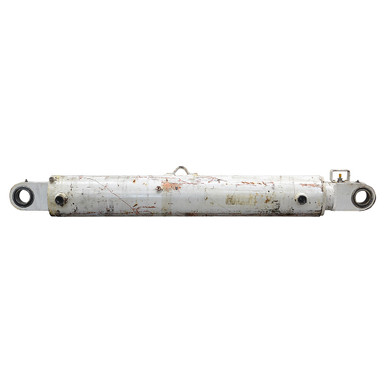

6″ x 32″ x 4.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Cylinder has accumulator in rod end with charging valve. Numbers on cylinder CPM36247
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 6″ x 32″
- Barrel Thickness 0.386″
- Gland Retainer Threaded in gland
- Pressure 3000 PSI max.
- Rod Dia. Hollow, 4.5″
- Rod Thickness 0.371″
|
- Ports SAE 12
- Retracted Length 55.25″
- Gland Face to Rod Pin Center 6.25″
- Shpg. 264 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Eye
- Thickness, Max 1.52″
- Pin-Center-To-Swivel Eye-End 2.31″
- Swivel Eye Width 2″
- Pin Hole 2-1/4″
|
- Base End Swivel Eye
- Thickness, Max 1.53″
- Pin-Center-To-Swivel Eye-End 2.29″
- Swivel Eye Width 2″
- Pin Hole 2-1/4″
|
