Description

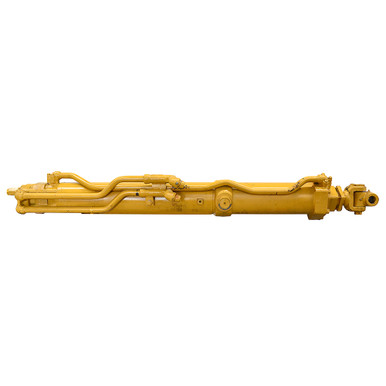

6″ x 47.5″ x 2.5″ DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder. Cylinder has cushion valve at the end of retract end.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 6″ x 47.5″
- Barrel Thickness 0.325″
- Gland Retainer Threaded in gland
- Pressure3000 PSI max.
- Rod Dia.2.5″
|
- Ports JIC 16
- Retracted Length30.5″
- Gland Face to Rod Pin Center5.75″
- Shpg. 375 lbs.
|
| END MOUNTINGS |
|
- Rod End Double swivel link
- O.D. 3″
- Width 3.875″
- Pin Hole 1-1/2″
|
- Base End Male Trunnion
- Pin Outside/Inside Width 10.75″ /8″
- Pin-Center-To-Rod Pin Center 30.5″
- Pin Center To Base End 45.25″
- Pin Diameter2-1/2″
|
