Description

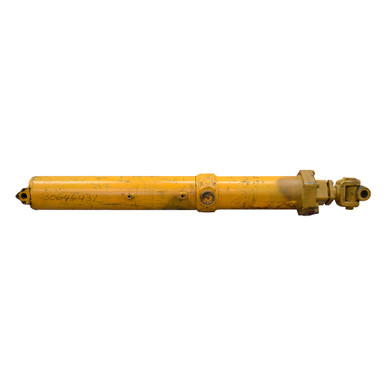

6″ x 48″ x 2.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 730646431
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 6″ x 48″
- Barrel Thickness 0.318″
- Gland Retainer Bolt on gland
- Pressure 3000 PSI max.
- Rod Dia. 2.5″
|
- Ports 1/2″ NPT
- Retracted Length 30.25″
- Gland Face to Rod Pin Center 5.875″
- Shpg. 315 lbs.
|
| END MOUNTINGS |
- Rod End Double swivel link
- O.D. 3″
- Width 4″
- Pin Hole 1-1/2″
|
- Base End Male Trunnion
- Pin Outside/Inside Width 10.75″ / 8″
- Pin-Center-To-Rod Pin Center 30.25″
- Pin Center To Base End 33.75″
- Pin Diameter 2-1/2″
|
