Description

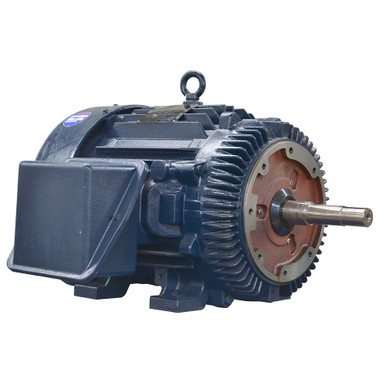

60/50 HP 3555 RPM 460 VAC THREE PHASE MARATHON MOTOR
New, Marathon three phase pump motor model RVM 364TTFS16006AN.
SPECIFICATIONS
- Power60/50 HP
- Voltage 380//460 AC
- Phase 3
- Frequency 50//60 Hz
- Amperage68//67 Amps
- Speed2958//3555 RPM
- Rotation Reversible
- Service Factor 1//1.15
- Bearings Ball
- EnclosureTEFC
- Duty Continuous
- Frame364JP
- Base Mount Four 0.66″ diam. holes on 11″ x 11-1/4″ centers
- Face Mount Four 5/8″-11 tapped holes on 11″ diameter bolt circle
- Shaft 1-3/4″ dia. x 3-1/2″ stepped down to 1-5/8″ dia. x 2-1/4″ w/ 3/8″ keyway
- Size 34-1/2″ x 27-1/4″ x 19″
- Shpg.881 lbs.
