Description

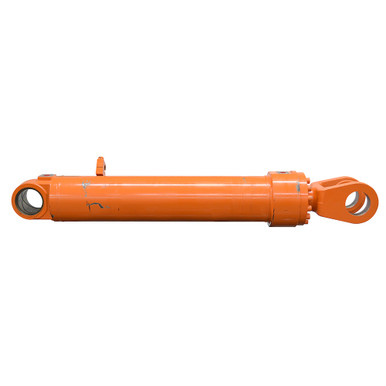

7.066″(180mm) x 35.656″(905mm) x 4.136″(105mm) HYD CYL
Unused old inventory. DOOSAN D0K095, welded, double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 7.066″(180mm) x 35.656″(905mm)
- Gland Retainer Bolt-on
- Pressure 2500 PSI max.
- Rod Dia. 4.136″(105mm)
- Rod Thickness 4.136″(105mm)
|
- Ports CODE 61 FLANGE 16
- Retracted Length 57.75″
- Gland Face to Rod Pin Center 8.75″
- Shpg. 632 lbs.
|
| END MOUNTINGS |
|
- Rod End Clevis
- Outside Width 8.375″
- Inside Width 4.75″
- Throat Depth 8″
- Pin Hole 4.333″(110mm)
|
- Base End Tang
- Width 5.782″
- Pin-Center-To-Tang-End 3.541″
- Pin Hole 4.335″(110mm)
|
