Description

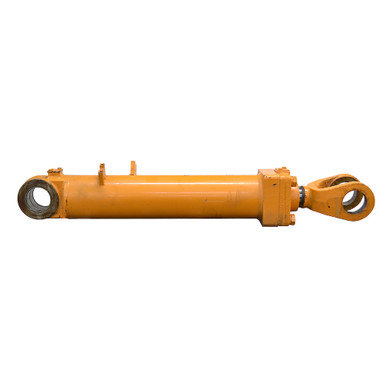

7.08″(180mm) x 30.71″(780mm) x 3.94″(100mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 2046-01040.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 7.08″(180mm) x 30.71″(780mm)
- Barrel Thickness 0.465″
- Gland Retainer Bolt on
- Pressure 3000 PSI
- Rod Dia. 3.94″(100mm)
|
- Ports 4 bolt 1″ code 61 flange size 16
- Retracted Length 55.875″
- Gland Face to Rod Pin Center 9.5″
- Shpg. 522 lbs.
|
| END MOUNTINGS |
- Rod End Clevis
- Outside Width 8.25″
- Inside Width 4.5″
- Throat Depth 8.5″
- Pin Hole 4.33″(110mm)
|
- Base End Tang
- Width 4.72″
- Pin-Center-To-Tang-End 3.97″
- Pin Hole 4.33″(110mm)
|
