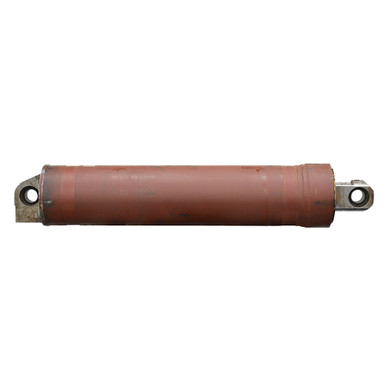

7.462"(190mm) x 61.25"(1555.75mm) Double Acting Two-Stage Telescoping Hydraulic Cylinder Hyco C9101-06200 DAT

7.462″(190mm) x 61.25″(1555.75mm) Double Acting Two-Stage Telescoping Hydraulic Cylinder Hyco C9101-06200 DAT

Original price was: $695.95.Current price is: $139.19.

SKU: 902761 Category:

Description

7.462″(190mm) x 61.25″(1555.75mm) DOUBLE-ACTING TELESCOPING CYLINDER
Unused old inventory. Double acting two stage, telescoping hydraulic cylinder. Hyco numbers on cylinder C9101-06200 DAT.

SPECIFICATIONS
  • Double Acting
  • Main Cyl Bore x Total Stroke 7.462″(190mm) x 61.25″(1555.75mm)
  • Thickness 0.394″
  • Number of Stages 2
  • Pressure 2000
  • Rod Dia. 4.41″
  • Extend Port 4 bolt 1″ code 61 flange size 16
  • Retract Port 4 bolt 3/4″ code 61 flange size 12
  • Retracted Length 45″
  • Shpg. 370 lbs.
END MOUNTINGS
  • Rod End Swivel Eye
  • Thickness, Max 2.97″
  • Pin-Center-To-Swivel Eye-End 2.02″
  • Swivel Eye Width 1.5″
  • Pin Hole 1-3/4″
  • Base End Swivel Eye
  • Thickness, Max 3″
  • Pin-Center-To-Swivel Eye-End 2.15″
  • Swivel Eye Width 1.5″
  • Pin Hole 1-3/4″
