7.48"(190mm) x 30.25"(768mm) x 3.54"(90mm) Double Acting Hydraulic Cylinder Volvo 11107166

7.48″(190mm) x 30.25″(768mm) x 3.54″(90mm) Double Acting Hydraulic Cylinder Volvo 11107166

Original price was: $799.95.Current price is: $159.99.

SKU: 904782 Category:

Description

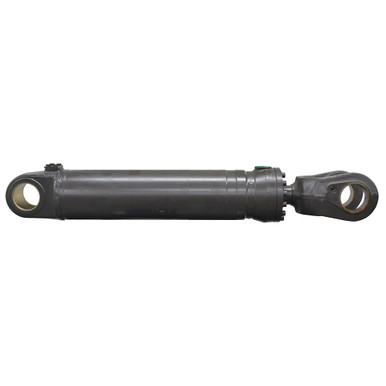

7.48″(190mm) x 30.25″(768mm) x 3.54″(90mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. VOLVO numbers on cylinder 11107166.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 7.48″(190mm) x 30.25″(768mm)
  • Barrel Thickness 0.806″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 3.54″(90mm)
  • Extend Port 4 bolt 1-1/4″ code 62 flange size 20
  • Retract Port 4 bolt 1″ code 62 flange size 16
  • Retracted Length 57″
  • Gland Face to Rod Pin Center 11.62″
  • Shpg. 674 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width 11″
  • Inside Width 6.25″
  • Throat Depth 10.25″
  • Pin Hole 4.72″(120mm)
  • Base End Tang
  • Width 6.125″
  • Pin-Center-To-Tang-End 3.97″
  • Pin Hole 4.72″(120mm)
