Description

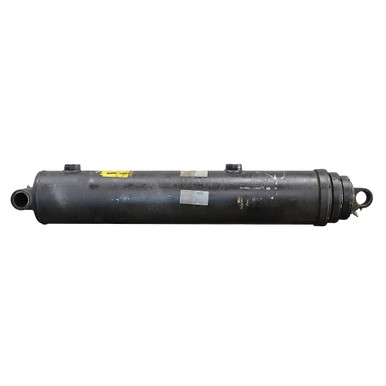

7.5″ x 108.75″ SINGLE-ACTING TELESCOPING CYLINDER
Unused old inventory. Single acting three stage, telescoping cylinder. Custom Hoists Inc. numbers on cylinder 73-800-110 4438.
Cylinder leaks and cylinder walls are pitted. Sold as is.
| SPECIFICATIONS |
- Single Acting
- Main Cyl Bore x Total Stroke 7.5″ x 108.75″
- Thickness 0.298″
- Number of Stages 3
- Pressure 2000 PSI
- Rod Dia. 5″
|
- Ports 1″ NPT
- Retracted Length 50″
- Overall Length 54″
- Shpg. 350 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Thickness, Max 2.01″
- Pin-Center-To-Tang-End 1.46″
- Pin Hole 2″
|
- Base End Cross-Tube
- O.D. 3.04″
- Width 8.75″
- Pin Hole 2″
|
