7.5" x 51" x 4" Double Acting Hydraulic Cylinder 040837 040834 3042 411115

7.5″ x 51″ x 4″ Double Acting Hydraulic Cylinder 040837 040834 3042 411115

Original price was: $699.95.Current price is: $139.99.

SKU: 904502 Category:

Description

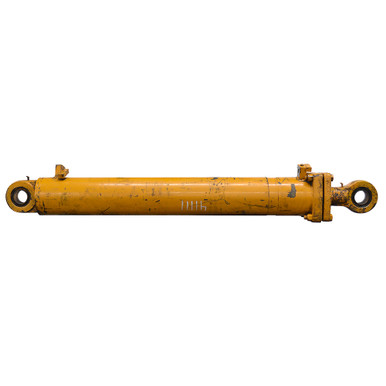

7.5″ x 51″ x 4″ DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 040837 040834 3042 411115.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke7.5″ x 51″
  • Barrel Thickness 0.643″
  • Gland Retainer Bolt on gland
  • Pressure3000 PSI
  • Rod Dia. 4″
  • Ports 4 bolt 1″ code 61 flange size 16
  • Retracted Length 77.5″
  • Gland Face to Rod Pin Center7.25″
  • Shpg. 826 lbs.
END MOUNTINGS
  • Rod End Swivel Eye
  • Thickness, Max 2.81″
  • Pin-Center-To-Swivel Eye-End 3.75″
  • Swivel Eye Width 2.625″
  • Pin Hole 3″
  • Base End Swivel Eye
  • Thickness, Max 2.77″
  • Pin-Center-To-Swivel Eye-End 3.66″
  • Swivel Eye Width 2.625″
  • Pin Hole 3″
